# Register

{% hint style="info" %}
L1 registrations use the RootRegistrar ABI, L2 registrations use the MakerRegistar ABI
{% endhint %}

{% tabs %}
{% tab title="Parameter Types" %}

```
{
    nftContractAddress: Address, // The Address of the NFT you want to Register
    nftId: Uint256, // Token ID of the NFT you want to Register
    creatorAddress: Address, // The Address receiving a cut of Maker rewards
    creatorSaleBasisPoints: Uint256 // The basis points set aside for the Maker
    optionBits: Uint256, // Parameter version of the Reaction you're using
    ipfsMetadataHash: String // Additional metadata saved with registration
}
```

{% endtab %}

{% tab title="MakerRegistrar ABI" %}

## Maker Registrar Contract Addresses

```
// Polygon Mainnet
0x47CD3266FA94E40613B37a88D98196325Cd28412

// Polygon Mumbai
0x06493B0362b3892EEc7C63023e8bC0C0c64646eb
```

## Maker Registrar Contract ABI

```typescript
Maker Registrar Contract ABI
{
  address: "0x06493B0362b3892EEc7C63023e8bC0C0c64646eb", // Mumbai Address
  abi:[{
    name: 'registerNft',
    stateMutability: 'nonpayable',
    type: 'function',
    inputs: [{
        internalType: 'address',
        name: 'nftContractAddress',
        type: 'address',
      },
      {
        internalType: 'uint256',
        name: 'nftId',
        type: 'uint256',
      },
      {
        internalType: 'address',
        name: 'creatorAddress',
        type: 'address',
      },
      {
        internalType: 'uint256',
        name: 'creatorSaleBasisPoints',
        type: 'uint256',
      },
      {
        internalType: 'uint256',
        name: 'optionBits',
        type: 'uint256',
      },
      {
        internalType: 'string',
        name: 'ipfsMetadataHash',
        type: 'string',
      },
    ],
    outputs: [],
  }]
}
```

{% endtab %}

{% tab title="RootRegistrar ABI" %}

## Root Registrar Contract Addresses

```
// Ethereum Mainnet
0x2665Aa3846EC61e6D28A0d9F76b70047719F3664

// Goerli Mumbai
0x33066F8848967a16FC27bc1b2f347c9345Ed8b33
```

## Root Registrar Contract ABI

```typescript
Root Registrar Contract ABI
{
  address: "0x33066F8848967a16FC27bc1b2f347c9345Ed8b33", // Goerli Address
  abi:[{
    name: 'registerNft',
    stateMutability: 'nonpayable',
    type: 'function',
    inputs: [
      {
        internalType: 'address',
        name: 'nftContractAddress',
        type: 'address',
      },
      {
        internalType: 'uint256',
        name: 'nftId',
        type: 'uint256',
      },
      {
        internalType: 'address',
        name: 'creatorAddress',
        type: 'address',
      },
      {
        internalType: 'uint256',
        name: 'creatorSaleBasisPoints',
        type: 'uint256',
      },
      {
        internalType: 'uint256',
        name: 'optionBits',
        type: 'uint256',
      },
      {
        internalType: 'string',
        name: 'ipfsMetadataHash',
        type: 'string',
      },
    ],
    outputs: [],
  }]
}
```

{% endtab %}

{% tab title="Example" %}

## Register a Reaction with `ethers.js` and `ipfs-http-client`

{% hint style="info" %}
See **MakerRegistar ABI** or **RootRegistrar ABI** tab for contract definitions
{% endhint %}

### \[Optional] Save Registration Metadata to IPFS

If you'd like to include a Reaction Name or Tags with your Reaction, you'll need to save that information to IPFS first.  If you just want to register a Reaction you can skip this step.

{% code overflow="wrap" %}

```typescript
import { client } from 'ipfs-http-client'

interface IRegistrationMetadata {
    name?: String;
    tags?: String[];
}

// Instantiate a new IPFS Client -- we use an IPFS node hosted by theGraph
const client = create(new URL('https://api.thegraph.com/ipfs/api/v0/'));

// Create a metadata blob to store comments and/or tags.
const registrationMetadata: IRegistrationMetadata = {
    name: "My Cool Reaction",
    tags: ["rara", "social", "curation"]
}

// Save registration metadata on IPFS to generate an ipfsCID.  Keep this ipfsCID handy as we'll use it in the next step.
const { ipfsCID } = await client.add(JSON.stringify(registrationMetadata));
```

{% endcode %}

### Register an NFT for use as a Reaction

To register a Reaction for use in the protocol, you'll use the `registerNft` function of either the `RootRegistrar` (a bridge for L1 NFTs) or the `MakerRegistrar` (for L2 NFTs).  All parameters are required (see the Parameters section for more details).

```typescript
import { Contract, constants } from 'ethers'

// Select an NFT to register as a reaction
const NFT = {
    contractAddress: 0x2953399124f0cbb46d2cbacd8a89cf0599974963,
    tokenId: 107136376226630408484522358727913128313617592685310283300071728450490266025985
}

// Instantiate the MakerRegistrar contract and attach a signer
const MakerRegistrar = new Contract(
    makerRegistar.address,
    makerRegistar.abi,
    signer
);

// Call the registerNft function with required parameters
const transaction = await MakerRegistar.registerNft(
    NFT.contractAddress, // Contract Address of the NFT to register
    NFT.tokenId, // Token ID of the NFT to register
    constants.AddressZero, // creatorAddress
    constants.Zero, // creatorSaleBasisPoints
    constants.Zero, // optionBits
    ipfsCID // "QmUgmdW3N8tgh5hZXna4p7sHxqTAhvf7CZhguoLhE7NsgV"
);

// await completion of registerNft function call
const receipt = await transaction.wait()
```

This example uses the `MakerRegistrar` to register an L2 NFT.  If you'd like to register an L1 NFT, simply switch out the `MakerRegistrar` for the `RootRegistrar`.
{% endtab %}
{% endtabs %}

## Parameters

{% hint style="info" %}
All parameters are required
{% endhint %}

#### nftContractAddress

Contract Address of the NFT receiving reactions

#### nftTokenId

Token ID of the NFT receiving reactions

#### creatorAddress

The address of the creator of this NFT. If a `creatorAddress` is set, they will receive a portion of the Maker Rewards generated each time this Reaction is spent based on the following `creatorSaleBasisPoints` parameter.  Use `addressZero` to leave the `creatorAddress` parameter unset.

#### creatorSaleBasisPoints

Basis points allocated to the creator as a portion of the MakerRewards generated during a reaction sale.  Use `0` if no basis points should be allocated to the creator.

#### optionBits

This parameter can be used to create different versions of the reaction NFT. Use `0` if `optionBits` are not set.

#### IPFSMetadataHash

This parameter can be used to embed additional data about the user interaction.  Use `maxInt256` if `ipfsMetadataHash` is not set.

## Source Code

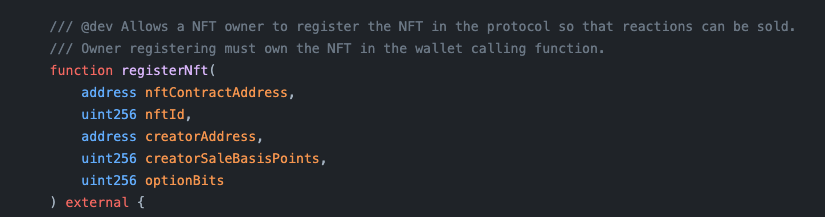

View the protocol on [Github](https://github.com/rara-social/rara-protocol/blob/088d1105a0b6667beb82f943e4109e9a3c8eba76/contracts/Maker/MakerRegistrar.sol#L80).
